Lab 01: Control Structures

Objectives

  1. Practice using for loops, while loops, and if statements.
  2. Practice creating functions and passing parameters.
  3. Practice Committing and Syncing often to GitHub to run autograding tests.

Step 0. Prepare

Step 1. if statement practice, 1

In functions.cpp in the grade() function, add code that

  1. prints "Enter your grade: "
  2. reads in an unsigned value from the user
  3. computes whether the letter grade (a char) is an A, B, C, D, or F. An A is 90 or above, a B is 80 - 89, etc.
  4. prints out the grade saying “Your grade is grade.”.

Compile your program by typing make in a terminal. Run it by typing ./tester step1. Verify that your output looks exactly like this:

Your grade is B.

Now, Commit and Sync your code to github. Use “step 1 complete” as your Message. When you Commit and Sync, the automated tests will run on github.

Commit and Sync your code to github.

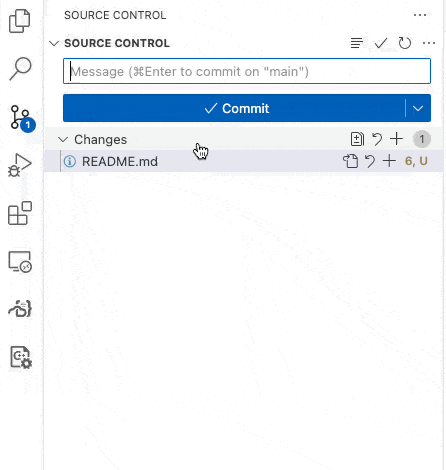

Figure 1:Commit and Sync your code to github.

Step 2. if statement practice, 2

Add code in functions.cpp in insurance() to implement the insurance plan shown in the table below, computing the result in as few lines as possible — but still using readable/hospitable code. To review the syntax of if statements in C++, you might find this useful: C++ Conditions, else and if.

Cost of the plans silver and gold

Plan Name1 Month2-6 Months7+ Months
silver$90$60$60
gold$90$70$35

The program first asks the user for the Plan Name — a string. Then, the program asks for the number of months — an unsigned. Then, the code uses a series of if statements to compute the cost — an unsigned — printing it out at the end. My implementation uses 2 if statements, 1 else if, and 2 else statements, not in that order. Part of my solution has an if-else pair embedded in another if/else body.

Finally, of course, your code prints out the results in nice English. Your output should match this output exactly. (Note the period at the end of the number at the end.)

The cost for your plan is $60.

Compile your code and run:

./tester step2and3 -c step2

The output should match the output above.

Now, Commit and Sync your code to github. Use “step 2 complete” as your “message”. When you submit the automated tests will run. Only the “step1” and “step2” tests should pass at this time. If they don’t, fix your code, and then resubmit. Repeat until the “step1” and “step2” tests pass.

Step 3. while loop practice

Improve your code from Step 2 by adding a while loop that checks if the user entered a legal plan name (“silver” or “gold”), and if not tells the user to try again. E.g.,

Enter a plan name: maroon
I'm sorry, "maroon" is not a known plan.
Enter a plan name: sliver
I'm sorry, "sliver" is not a known plan.
Enter a plan name: gold
... code goes on now ...

The while loop repeats until the user enters either silver or gold.

Compile your code and run:

./tester step2and3 -c step3

The output should match the output above.

Now, Commit and Sync your code to github. Make sure the first 3 tests pass.

Step 4. switch statement

Now, write in code in vowel() that asks the user to enter a single lowercase letter. Your code must use a switch statement to test if the letter is a vowel or consonant. Vowels are ‘a’, ‘e’, ‘i’, ‘o’, and ‘u’. We’ll call ‘y’ a consonant for this exercise.

Use default in your switch statement for the “consonant” case.

Have your code produce output like this:

The letter is a vowel.

or

The letter is a consonant.

Compile your code and run:

./tester step4

The output should match the output above.

Now, Commit and Sync your code to github. Make sure the first 4 tests pass.

Step 5. for loop, 1

Now, write code in sevens():

  1. create an array of unsigned of size 8 called values
  2. a for loop to initialize the values array to 0, 7, 14, 21, ...
  3. a series of assert statements to check that the 0th value is 0, 3rd value is 21, and 7thvalue is 49.
  4. A line to print out “All tests passed!”
  5. You may have to #include <cassert>

Test with:

./tester step5

Now, Commit and Sync your code to github. Make sure the appropriate tests pass.

Step 6. for loop, 2

Now, write code in sum():

  1. create an array of doubles, of size 100.
  2. write a for loop to fill in the array with the values 0.0, 0.1, 0.2, 0.3, etc.
  3. write a for loop to sum up all the values in the array -- but this loop has to iterate from the last item down to the first.
  1. print out the resulting sum

Test with:

./tester step6

Now, Commit and Sync your code to github. Make sure the appropriate tests pass.

Step 7. defining a function

Now, write code to:

  1. implement a function called getPlan() and copy your code from Step 3 above into it. The function returns the string (“silver” or “gold”) that the user enters. This function (and the ones in the next steps) is again in functions.cpp and functions.h.
  2. copy the code that gets the number of months from the user into a function called getMonths(). This function returns the number of months a user enters. Note that the prompt asking the user to enter the number of months should read something nice, like this:
Enter the number of months:
  1. copy the code that computes the cost into a function called computeCost(). This function takes the plan name and the months as arguments and returns the cost.
  2. Uncomment and study step7 of tests.cpp. The code just does 4 things: call getPlan(), call getMonths(), call computeCost(), and print out the cost. Anyone who looks at that code will understand it because the code is short and uses good function names.

Test with:

./tester step7

Run the test multiple times with various inputs to make sure the computation is correct.

Now, Commit and Sync your code to github. Make sure all tests pass.

Grading Rubric

This lab is worth 16 pts:

Ways students have lost points in the past:
