1. Setup

Global Variables¶

We will need three global variables for this model:

• b (benefit): The benefit conferred to the recipient when an agent cooperates.
• c (cost): The cost incurred by the cooperator when they choose to cooperate.
• p0 (initial cooperation probability): The probability that a newly created agent is a cooperative agent (ALLC) rather than a defective agent (ALLD).

We will also create a slider to define the size of the lattice (L x L). The total number of agents (N) will be calculated as N = L * L.

Our initial lattice will have size 31. So, $N = 31 \cdot 31 = 961$ agents.

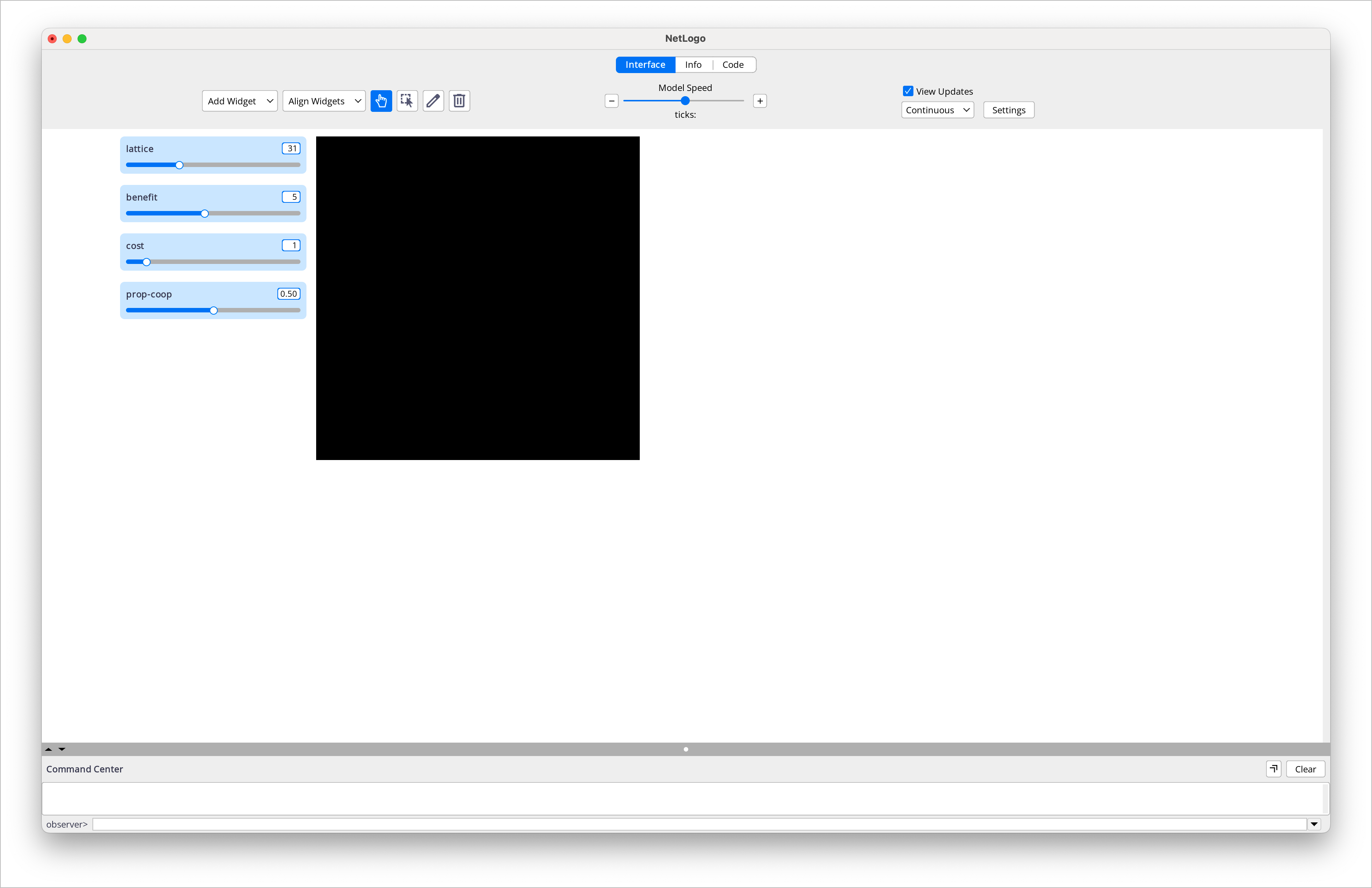

These four variables will be adjustable in the interface.

For our code, I’m defining the limits for the interface sliders as follows:

• benefit (b): min 0, max 10, initial value 5, step 1
• cost (c): min 0, max 10, initial value 1, step 1
• prob-coop (p0): min 0, max 1, initial value 0.5, step 0.01
• lattice (L): min 10, max 100, initial value 31, step 1

In our setup we will need to make sure that b > c > 0. We can do this by adding a check in the setup procedure that resets the values if they don’t satisfy this condition. Also, we need to configure the size of the world to be a toroidal lattice of size L x L.

to setup
  clear-all
  if not (benefit > cost and cost > 0) [
    set benefit 5
    set cost 1
  ]
  resize-world 0 (lattice - 1) 0 (lattice - 1) ; resize the world
  ; rest of setup code...
end

Creating Agents¶

Our agents will be a new breed called players. Each agent will have two attributes: strategy (which can be “ALLC” or “ALLD”) and payoff (to keep track of the agent’s accumulated payoff).

breed [players player]
players-own [
    strategy  ; "ALLC" or "ALLD"
    payoff    ; accumulated payoff
]

We will create N = L x L agents and distribute them in a lattice structure. Each agent will be assigned a strategy (ALLC or ALLD) based on the probability p0.

to make-players
    ask patches [
        sprout-players 1 [
            set strategy ifelse-value (random-float 1 < prob-coop) [ "ALLC" ] [ "ALLD" ]
            set payoff 0
            set shape "circle"
        ]
    ]
end

A procedure to recolor the agents is needed after each strategy update.

to recolor-players
    ask players [
        set color ifelse-value (strategy = "ALLC") [ green ] [ red ]
    ]
end

So far, our code looks like this:

breed [players player]

players-own [
    strategy  ; "ALLC" or "ALLD"
    payoff    ; accumulated payoff
]

to setup
  clear-all
  ;; checking the validity of the values for benefit and cost
  if not (benefit > cost and cost > 0) [
    set benefit 5
    set cost 1
  ]
  resize-world 0 (lattice - 1) 0 (lattice - 1) ; resize the world to match the slider lattice
  make-players
  recolor-players
  reset-ticks
end

to make-players
    ask patches [
        sprout-players 1 [
            set strategy ifelse-value (random-float 1 < prob-coop) [ "ALLC" ] [ "ALLD" ]
            set payoff 0
            set shape "circle"
        ]
    ]
end

to recolor-players
    ask players [
        set color ifelse-value (strategy = "ALLC") [ green ] [ red ]
    ]
end
