Project 04: More Vec Operations

Objectives

  1. Build more vector operations.
  2. Practice using the debugger (if necessary).

Step 0. Prepare

  1. Click the link and then “Accept this assignment”.
    • Wait a few seconds and refresh the page. Refresh until the page says “You’re ready to go!”. The page has a link to a github repo.
    • Click the link to see your new repo on github.com.
    • Click the green Code button and copy the link it shows.
  2. In a terminal,
    • cd to the directory where you are putting all your CS112 assignments.
    • type git clone paste-the-contents-of-the-link-you-copied
    • cd to the new directory containing your repo.

In the video below I’ve copied the files from my lab04 folder to the proj04 folder as requested. Can you follow up with the steps?

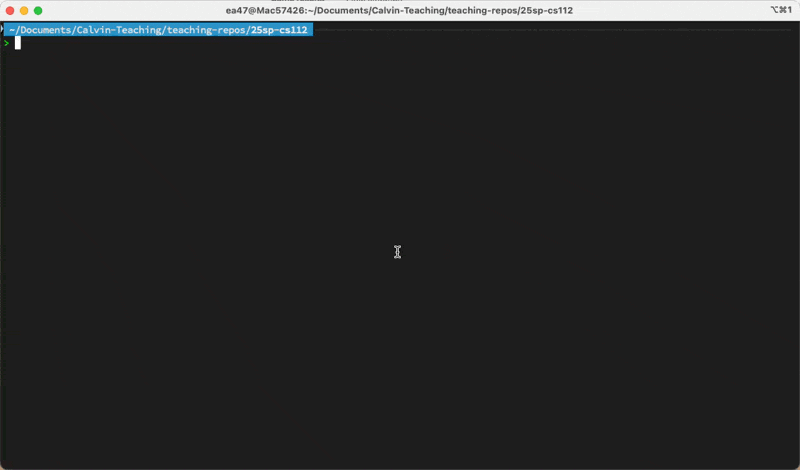

Copying Vec.h and Vec.cpp from lab04 to proj04.

Figure 1:Copying Vec.h and Vec.cpp from lab04 to proj04.

Vec& operator=(const Vec& original);
Vec& Vec::operator=(const Vec& original) {
    if (this != &original) {
        if (mySize != original.mySize) {
            if (mySize > 0) {
                delete[] myArray;
                myArray = nullptr;
            }
            if (original.mySize > 0) {
                myArray = new Item[original.mySize];
            }
            mySize = original.mySize;
        }
        for (int i = 0; i < mySize; ++i) {
            myArray[i] = original.myArray[i];
        }
    }
    return *this;
}

Step 1. Introduction

This week’s project adds more functionality to the Vec class we built in the lab. To illustrate, suppose that v1, v2, and v3 are Vec objects containing the following values:

v1 == {1, 2, 3}
v2 == {2, 4, 6}
v3 == {1, 2, 3}

1.0 Subscript

The subscript operator ([i]) can be implemented such that using subscripting on the left-hand-side of an assignment (i.e., setting a value in the array) and using subscripting on the right-hand-side (i.e., getting a value in the array) both work. Thus, the method will be similar to both setItem(i) and getItem(i).

Here is the algorithm:

Item &operator[](unsigned index)
    check if index is legal. If not, throw a range_error
    return myArray[index];

Because the method is returning a reference to the item in the array, subscripting works for both sides of an assignment.

1.1 Const subscript

If a Vec object is defined as constant then indexing the array in the Vec must also be constant — i.e., it cannot allow code to change the array. In tests.cpp, see a function called testConstSubscript(). This function takes a const-ref parameter. The subscripting of that Vec parameter will require us to implement the const subscripting method. The code in the method is identical to the code you wrote in the previous step above, but it returns const Item &, and is a const method — i.e., has const on the end of the line. Implement that method now so that all subscripting tests pass.

1.2 Vector Addition

The expression:

v3 = v1 + v2;

should set v3 == {3, 6, 9}, without leaking memory.

When C++ compiles v1 + v2, it looks at the types of the values that surround the +. It sees that v1 is a Vec object, so it actually will call operator+() on the v1 object, passing v2 as the parameter. Thus, the prototype is

Vec Vec::operator+(const Vec &rhs) const

v1 is the “this” object that operator+ is being called on. v2 is being passed in as the rhs (right-hand-side) parameter.

Implement it. The implementation is quite simple: make sure the sizes of the two Vecs are the same. If not, throw an error of type invalid_argument. If they are the same, create a new Vec object (of the correct size) and loop, repeated adding the values from myArray[i] and rhs[i] together and putting the result into the new Vec object.

1.3 Vector Subtraction

The expression:

v3 = v1 - v2;

should set v3 == {-1, -2, -3}, without leaking memory.

Step 2. Application

Congratulations! 🎉🎉🎉🎉 You have been named the navigation officer on the starship U.S.S. Boobyprize, whose hyper-spatial engines allow the ship and its crew to explore the universe. Current theories suggest that reality consists of 11 or more dimensions, so you need a program to help you navigate through an N-dimensional space.

Vectors can be used to store positions (and/or directional forces) in a coordinate system. Vectors of length 2 can be used to store 2-dimensional (x, y) information; vectors of length 3 can be used to store 3-dimensional (x, y, z) information; and so on. Your task is to write a program that:

  1. Prompts for and has the user enter the number of dimensions in their space, storing this number in a variable N, which it can then use to define vector objects.
  2. Prompts for and has the user enter a starting position in that space, and stores that position in a vector object sum.
  3. Uses a loop that:
    1. prompts for and has the user enter a position (relative to their current position), and stores that position in a vector,
    2. adds that vector to the sum vector.
  4. This loop should let the user enter an arbitrary number of positions.
  5. Outputs the starting position plus the final position (i.e., the sum of the positions from the accumulator-vector).

For example, if the user is in a 3-dimensional system, enters the starting point {0, 0, 0}, and then enters the following four 3-dimensional relative-positions:

{1, 0, 0}
{0, 1, 0}
{0, 0, 1}
{1, 2, 3}

the program should then display the starting position ({0,0,0}) and the sum from the accumulator ({2, 3, 4}), which is the user’s final position within the 3-dimensional system.

As another example, if the user is navigating through a 5-dimensional space, enters {1, 0, 1, 0, 1} as the starting point, and enters three 5-dimensional relative-positions:

{0, 1, 0, 1, 0}
{2, 2, 2, 2, 2}
{-3, -3, -3, -3, -3}

the program should then display the starting position and the final position ({0, 0, 0, 0, 0}).

Your application should have the user enter the vectors in the format expected by your readFrom(istream&) method: numbers separated by whitespace. (It does not have to parse through curly-brace and comma characters.) Likewise, your application can display the starship’s position using the format provided by your writeTo(ostream&) method -- numbers separated by spaces.

To get you well on your way, your repo contains App.cpp and App.h. These files provide most of what you have to implement to finish this project. Just implement the missing TODO parts.

Now that you have addition implemented, you’ll need to uncomment the line in App.cpp that reads

res = res + v;

You will have to edit main() in main.cpp to:

  1. call the App() constructor, and then
  2. on the resulting object, call run().

Compile the program with make proj4 and execute the program by doing ./proj4.

Submit

Submit your changes using git, either from the command line or using VSCode. Push your changes up to github.

Verify you have synced your code to github by going to your online repo webpage and looking to see that the files are correct.

Grading Rubric

30 pts Total:

Ways students lost points in the past:
